C-QBO/50 ORIGINAL BI-WIRE / Metre (uç hariç)
ÖZELLİKLER VE AVANTAJLAR
%99,999 güvenli 79 tel OFC
Sinyal için düşük dirençler sağlamak ve oksidasyondan korumak amacıylaYüksek gürültülü düşük dirençli polietilen dielektrik
Kablo kapasitanından kaynaklanan ses sinyalinin kaybını daha fazla derinlik ve ayrıntı sunmak için kullanılır.TEKNİK ÖZELLİKLER
Kablo aralığı - 14 AWG
Kılıf dış çapı - 3,60 mm x 17 mm
Kesit alanı - 2,50 mm²
Döngü direnci - 0,015 Ω/m
Kapasitans - 22 pF/m
İndüktans - 0,76 µH/m
Kayıp faktörü - 0,0004
Tüm kurulumlarda kullanım için ideal
Bükümlü Çap - 2,10 mm (minimum)
ABS, Metal ve Mini Airloc için uygundur

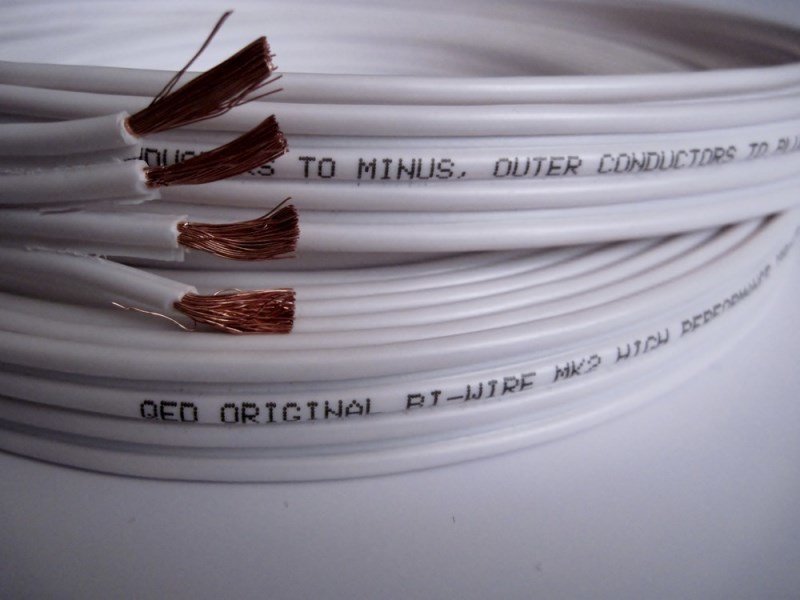

Original builds on the QED 79 Strand by adding a Low density polyethylene dielectric to cut down on the amount of audio signal energy lost due to cable capacitance. 99.999% oxygen free copper conductors and optimised geometry are used to deliver the superb sound quality of this low cost cable
FEATURES AND BENEFITS
79 strands of 99.999% OFC
To ensure a low resistance pathway for the signal and protection from oxidisationHigh performance low-density polyethylene dielectric
Used to reduce the amount of audio signal energy lost due to cable capacitance to deliver greater depth and detail.SPECIFICATIONS
Wire gauge - 14 AWG
Jacket OD - 3.60 mm x 17 mm
Cross-sectional area - 2.50 mm²
Loop resistance - 0.015 Ω/m
Capacitance - 22 pF/m
Inductance - 0.76 µH/m
Dissipation factor - 0.0004
Ideal for use in all installations
Lifetime Guarantee
Stranded Diameter - 2.10 mm (min)
Suitable for ABS, Metal & Mini Airloc
